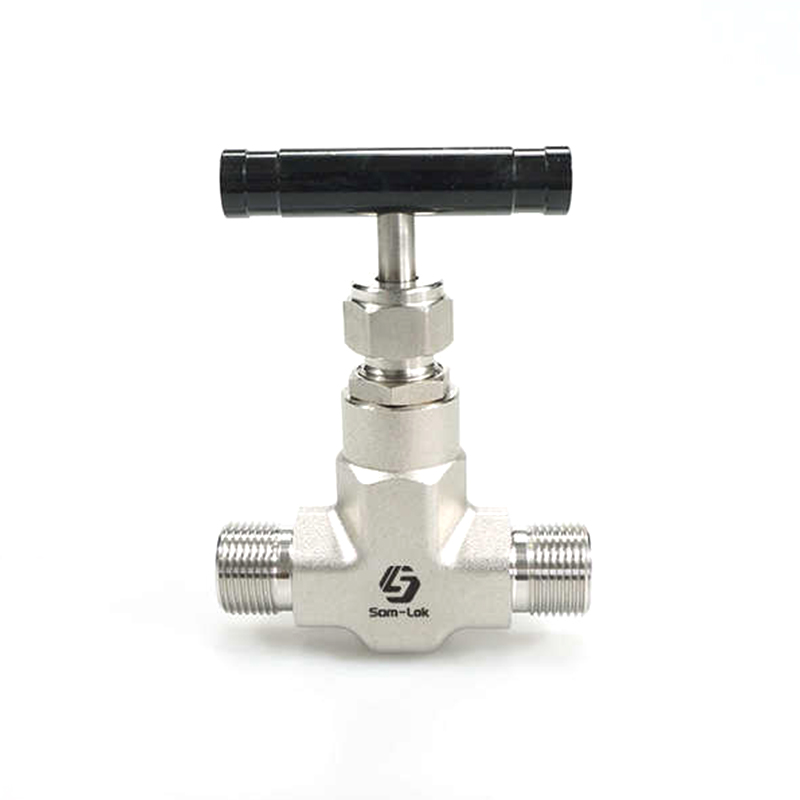

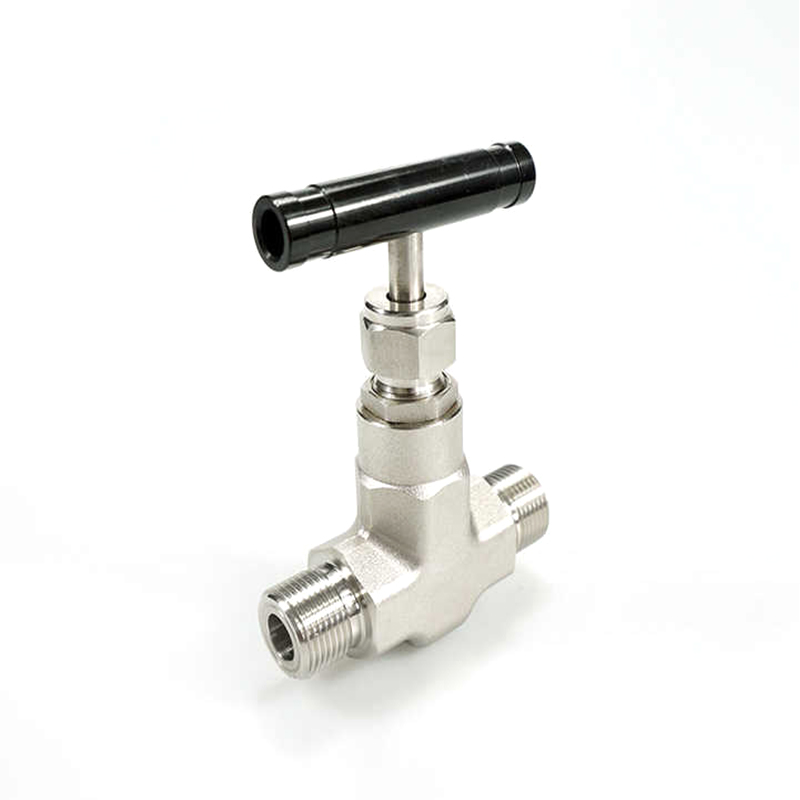

Stainless Steel Male Thread Needle Valve

Stainless Steel Male Thread Needle Valve

Stainless Steel Male Thread Needle Valve is a high-pressure fluid control valve that is manually operated and uses a precise inner cone design to adjust the flow. It is particularly suitable for the control of high-pressure liquids, gases, oils, water, and acidic and alkaline media. This needle valve adopts a 10000PSI NPT (National Pipe Thread) structure, which can withstand extremely high working pressures and ensure its sealing and stable performance under high-pressure environments. The valve body is made of stainless steel, which has excellent mechanical strength and corrosion resistance, and can effectively resist the corrosion of the medium to the valve, ensuring long-term stable operation. It can adapt to common industrial temperature ranges, and its design can not only work stably at room temperature, but also effectively control the flow at high temperature.

Contact Us
  • Describe
  • Parameter
Describe

Structure: 10000PSI Male Female NPT Needle Valve

Pressure: High Pressure

Power: Manual

Material: Stainless Steel

Temperature of Media: Normal Temperature

Media: water,oil,gas,acid or base

Port Size: 1/4'' - 11/2''

Place of Origin: Jiangsu, China (Mainland)

Model Number: 10000PSI Male NPT Needle Valve

Application: General

size: 1/4'' - 11/2'' 6~38mm

working pressure: 10000psi or as your request

Working Temperature: 0°F to 450°F (-18℃ to 232℃)

connection: female , coupling or welded

technics: Stainless Steel 10000PSI Male Female Needle Valve

Tube Treatment: fully annealed

Nut Treatment: silver planted

Inner Cone: mirror polishing processing
