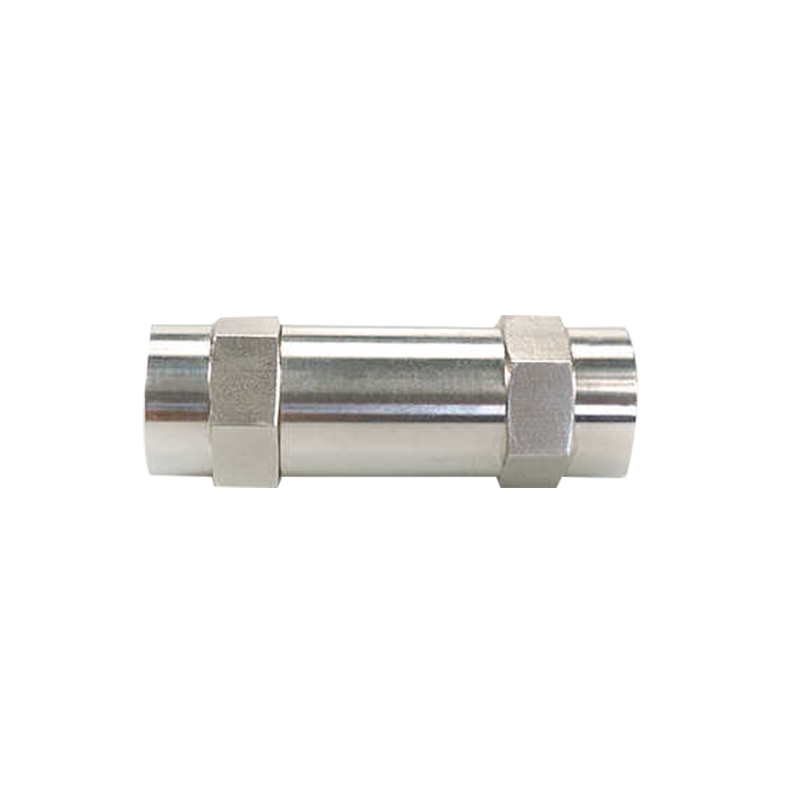

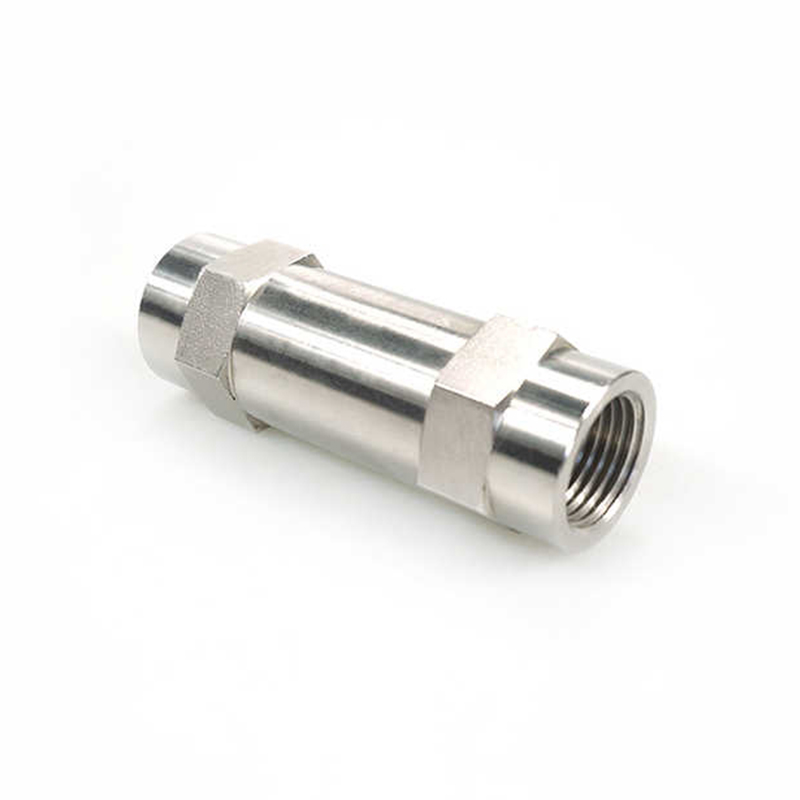

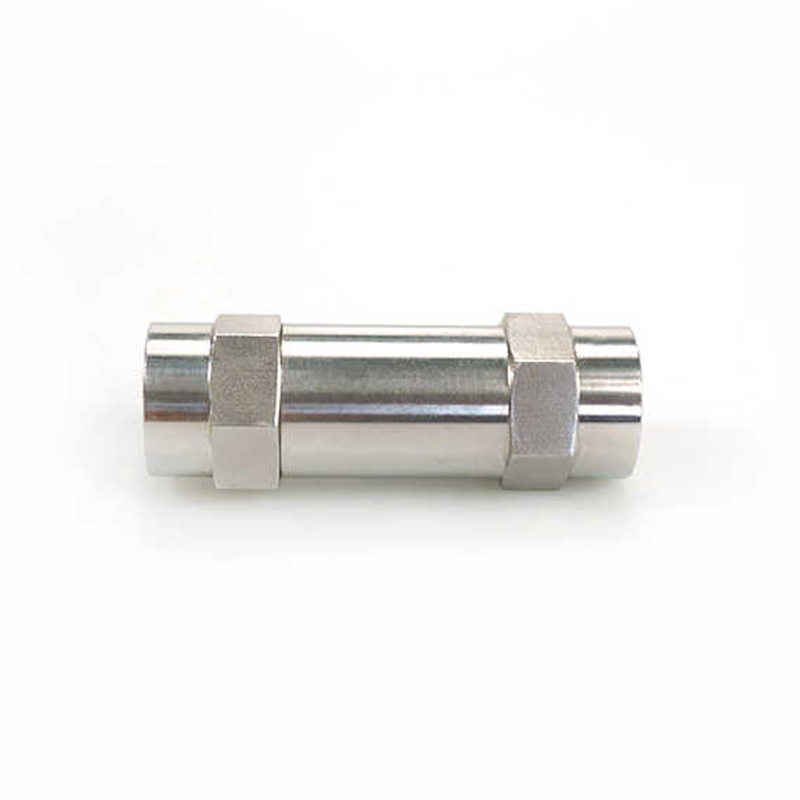

Stainless Steel Female Thread High Pressure Check Valve

Stainless Steel Female Thread High Pressure Check Valve is a check valve designed for high pressure pipeline system. It can withstand large working pressure and is suitable for high pressure pipeline system with working pressure of 1.6MPa to 42MPa. Its internal structure has been carefully designed to ensure stable operation under various pressure conditions. It has the ability to ensure that the fluid flows only in one direction, avoiding system damage and equipment failure caused by reverse flow of the fluid. This design plays an important role in preventing reverse pressure of pumps and other equipment, and can effectively ensure the safety and normal operation of the pipeline system. When the fluid flows normally in the pipeline, the pressure of the fluid pushes the valve disc to open upward, allowing the fluid to pass through the valve smoothly. When the flow direction of the fluid changes, the reverse pressure closes the valve disc, thereby cutting off the reverse flow channel, preventing the fluid in the pipeline from flowing back, and ensuring that the fluid flows only in the predetermined direction. Through the automatic opening and closing of the valve disc, no manual operation is required, and it has automatic control function.
